KY-TB05 圆瓶不干胶贴标机

KY-TB05 圆瓶不干胶贴标机

建议零售价
0.00
没有此类产品
产品描述
产品参数
品牌
型号
加工定制
功率
Kw
电压
v
功能
包装膜款
mm
制成袋尺寸
mm

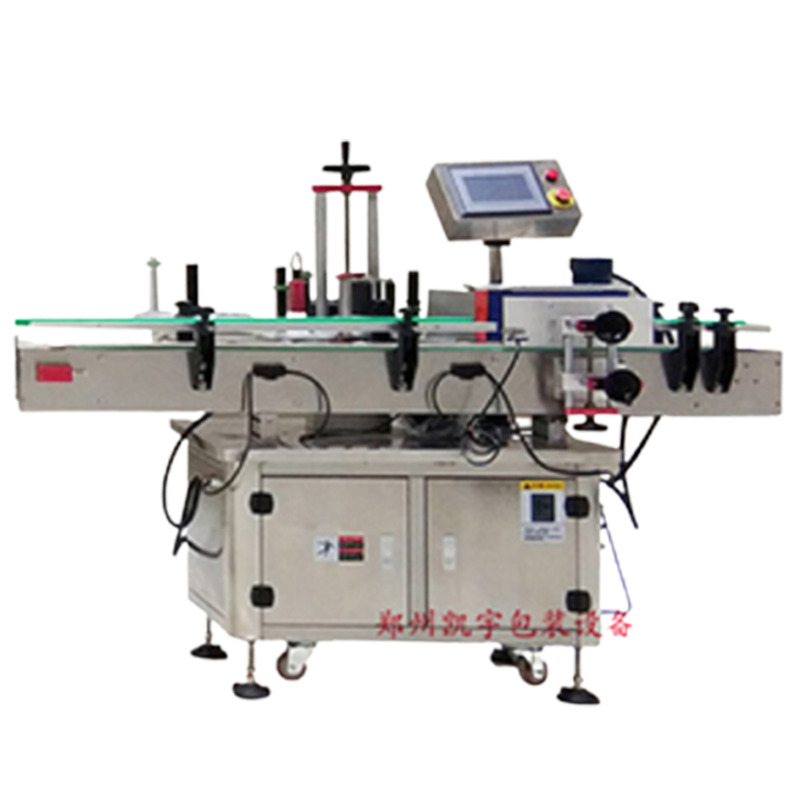

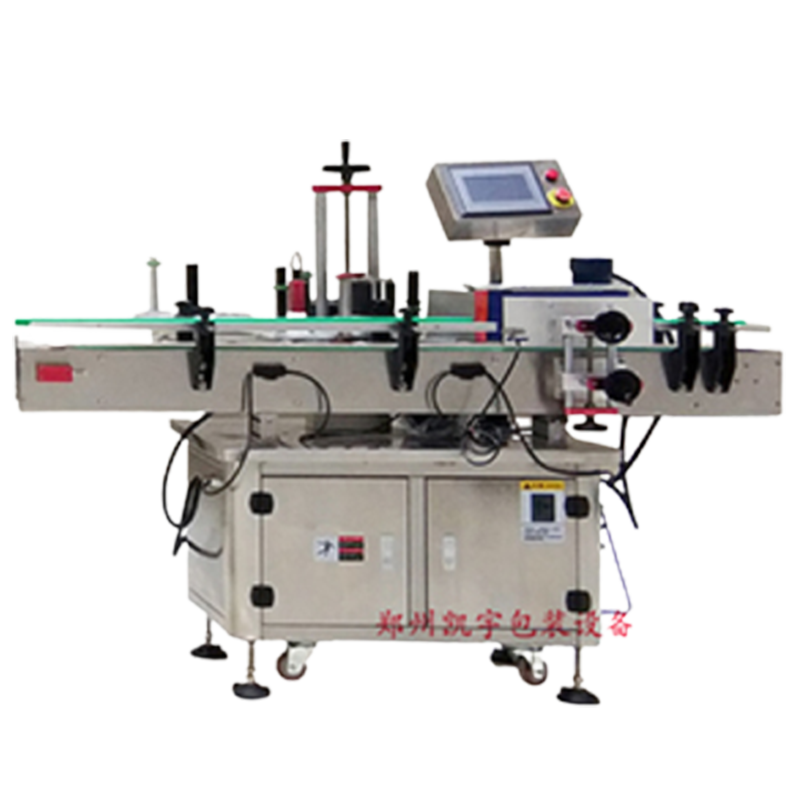

KY-TB05 圆瓶不干胶贴标机  Round Bottle Sticker Labeling Machine



A.产品简介:

本机主要用于各种圆瓶表面贴标,贴标过程稳定可靠,能使瓶子侧面所贴的不干胶标签平整,且打上清晰的生产日期, 生产批号(打码机为热码打印,字数三排)。本机结构简单简洁合理,具有多道控制系统,遇缺瓶,控制系统就不再送出标纸,有效防止了标纸的浪费。并有无标或断标自动停机等保护功能。产品完全符合GMP规范要求,广泛适用于医药、食品、化工等行业。

Product introduction:

This machine is mainly used for the surface labeling of various round bottles. The labeling process is stable and reliable. It can make the self-adhesive label on the side of the bottle flat, and print a clear production date, production batch number (the coding machine is hot code printing, Three rows of words). The structure of this machine is simple, concise and reasonable. It has a multi-channel control system. In case of bottle shortage, the control system will no longer send out the label paper, effectively preventing the waste of label paper. And there are protection functions such as automatic shutdown if there is no label or when the label is broken. The products are in full compliance with GMP requirements and are widely used in medicine, food, chemical and other industries.



B.特点 Features

1.具有贴标准确、精度高

1. Accurate labeling and high precision

2.无物不贴标,无标自动校正、自动检测

2. Nothing, no labeling, automatic correction and automatic detection when there is no label

3.该机既可单机使用,也可与其它装机自动连线使用。

3. The machine can be used as a stand-alone machine or automatically connected with other installed machines.





  1. 技术参数 Technical Parameter

型号Model

KY-TB05 圆瓶不干胶贴标机Round Bottle Sticker Labeling Machine

贴标速度 Labeling speed

0-50 bottles/min

贴标直径 Labeling diameter

Φ20-φ100mm

贴标精度Labeling accuracy

±1mm

标签长度 Sticker length

20-200mm

标签宽度Sticker width

10-100mm

功率 Power

0.5kw

电压 Voltage

AC220V/50Hz

整机重量 Weight

250kg

外形尺寸 Dimensions

1800*900*1400mm
